Flow control in large-scale systems, especially in industries with expansive pipelines, is a critical factor that ensures smooth operations, safety, and efficiency. When managing the flow of fluids in large-diameter pipes, the need for effective control valves is paramount. Among the many valve types used, the butterfly check valve stands out as a reliable solution. This valve is widely used across various industries, from water treatment to offshore pipeline systems. In this article, we will explore the butterfly check valve's design, key performance features, and industrial applications, all while emphasizing the importance of iron check valves in enhancing the valve's overall performance.
Large-diameter pipelines present unique challenges when it comes to controlling the flow of fluids. These systems, which carry significant volumes of liquid or gas, require robust solutions to manage the directional flow, prevent backflow, and maintain the pressure balance within the pipe. The importance of controlling flow is evident across various industries, where even a slight disturbance in fluid flow can lead to system malfunctions, energy losses, and potential hazards.
In such systems, check valves are crucial. Their primary function is to allow flow in only one direction while preventing backflow that could lead to pressure surges, damage, or contamination. Among the many types of check valves, the butterfly check valve, especially when made of iron, offers distinct advantages for large-scale systems.
Iron butterfly check valves are designed specifically to manage high-volume flow while offering superior strength and performance. The use of iron in these valves significantly enhances their durability and ensures they can withstand the high pressures and harsh conditions typically found in large-diameter pipelines.

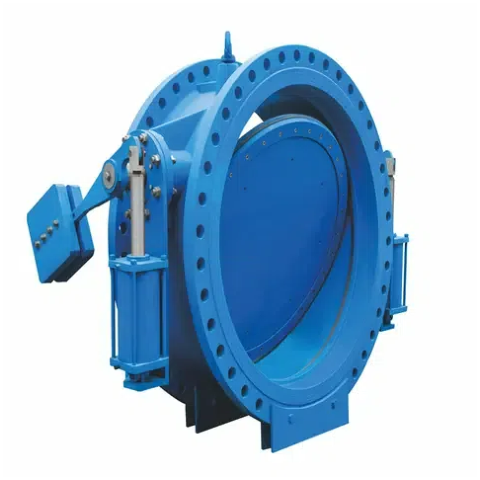

A butterfly check valve operates by using a disk that rotates on a shaft to either allow or block the flow of fluid. When the flow moves in the desired direction, the valve’s disk is pushed open, allowing fluids to pass through. If the flow reverses, the disk will swing shut, preventing any backflow. This simple yet efficient design makes butterfly check valves an essential tool in large-scale fluid systems.
The key difference between a traditional butterfly valve and a butterfly check valve is the lack of an actuator for manual control. While the traditional butterfly valve is manually operated or remotely controlled to regulate the flow, the butterfly check valve automatically responds to the direction of flow, ensuring that the system operates safely and efficiently.
The choice of material in valve construction plays a significant role in the performance and longevity of the valve. Iron, particularly ductile iron, is known for its excellent strength and resistance to wear and corrosion. When used in butterfly check valves, iron enhances the valve's ability to handle high-pressure conditions and resist rust, even in harsh environments such as water treatment plants, marine systems, and cooling towers.
Iron’s durability ensures that the valve can withstand the intense mechanical stresses exerted by large volumes of fluid and extreme operating conditions. This makes iron butterfly check valves a reliable choice for industries that require consistent, long-lasting performance without frequent replacements or maintenance.
When it comes to large-diameter pipeline systems, butterfly check valves offer several key performance benefits that make them the preferred choice for flow management.
One of the standout features of butterfly check valves is their lightweight construction, even in large sizes. Unlike other valve types that can be heavy and cumbersome, butterfly valves are designed with a disc and a compact body, making them easier to handle and install in large pipelines. This lightweight design reduces installation time and labor costs, while also making transportation and storage more convenient.
Butterfly check valves are designed to minimize pressure drop, which is the loss of pressure as fluid flows through the valve. This feature is essential in large systems, where energy efficiency is crucial. By reducing the pressure drop, butterfly check valves ensure that the flow remains consistent, and the system operates efficiently, ultimately lowering energy consumption and operational costs.
The iron construction of butterfly check valves provides them with excellent corrosion resistance, making them ideal for use in industries where the valve is exposed to moisture, chemicals, or other corrosive agents. Whether in water treatment plants or marine environments, the corrosion resistance of iron ensures that the valve will remain functional for a long time, reducing the need for frequent repairs or replacements.
This extended service life also contributes to the overall cost-effectiveness of using iron butterfly check valves, as the long-lasting nature of these valves provides businesses with reliable performance at a lower overall cost.
The versatility of butterfly check valves makes them a popular choice across a wide range of industries. Here are some of the key sectors where these valves are used:
Water treatment plants require robust and efficient systems to manage the flow of water and prevent contamination. Butterfly check valves are often used to ensure that the flow is directed correctly and that backflow is prevented, which could lead to contamination of clean water supplies. Their corrosion-resistant properties make them ideal for handling both clean and wastewater in these environments.
In HVAC systems, particularly in large buildings or industrial plants, butterfly check valves help manage the flow of air or coolant through the pipes. Their lightweight construction and minimal pressure drop are key advantages in these systems, where efficiency is critical. Butterfly check valves also play an essential role in cooling towers, where they prevent backflow that could damage the system.
Marine and offshore pipeline systems face unique challenges due to the harsh conditions of saltwater, high-pressure environments, and the need for reliable equipment. Iron butterfly check valves are an excellent choice for these systems, where the need for corrosion resistance, durability, and efficient flow control is paramount. These valves are often used in oil and gas pipelines, seawater desalination plants, and other offshore operations.
When installing butterfly check valves, there are a few important considerations to ensure optimal performance:
Butterfly check valves can be installed both horizontally and vertically, but it's crucial to follow the manufacturer's guidelines to ensure the valve operates correctly. In horizontal installations, the valve’s disc is aligned with the flow, while vertical installations may require the use of supports to maintain proper alignment.
Like all mechanical components, butterfly check valves should be regularly inspected for wear and tear, especially in systems where they handle high volumes of fluid. Areas to inspect include the valve's seal, disc, and shaft to ensure they are functioning correctly and there is no buildup of debris or corrosion.
It's important to consider the compatibility of the valve material with the fluid being transported. Iron butterfly check valves can handle a wide range of fluids, but it's always best to consult with the manufacturer to ensure the material will not react with the substance being transported.
Butterfly check valves are an essential tool for managing flow in large-diameter pipeline systems. Their lightweight construction, corrosion resistance, and energy efficiency make them the ideal solution for industries ranging from water treatment to marine and offshore pipeline systems. By choosing reliable iron butterfly check valves, companies can ensure optimal flow control, minimize maintenance costs, and extend the lifespan of their systems.
