An iron check valve is a crucial component in piping systems, designed to regulate the flow of fluids and prevent backflow. Whether used in industrial, commercial, or residential applications, selecting and installing the right iron check valve ensures efficient system performance and longevity.
Proper installation is essential to avoid pressure drops, leaks, or system failures. In this guide, we will explore the fundamentals of iron check valves, their types, selection criteria, and step-by-step installation to achieve optimal flow control. By following this detailed guide, you will ensure that your iron check valve performs efficiently, reducing maintenance costs and extending the lifespan of your piping system.
An iron check valve is a type of non-return valve that allows fluid to flow in one direction while preventing reverse flow. These valves are commonly used in water supply systems, wastewater treatment, industrial pipelines, and HVAC systems.
Prevents Backflow – Ensures that liquid or gas flows in only one direction.
Reduces Water Hammer – Minimizes pressure surges that can damage pipelines.
Enhances System Efficiency – Maintains consistent pressure and prevents contamination.
Durable and Long-Lasting – Made from cast iron or ductile iron, offering superior durability.
Low Maintenance – Requires minimal servicing compared to other valve types.
An iron check valve operates automatically without manual intervention. It opens when fluid pressure is applied in the forward direction and closes when the flow reverses, preventing backflow. The closing mechanism depends on the type of check valve used, which will be discussed in the next section.
Different types of iron check valves are used depending on the application, flow conditions, and pressure requirements. Below is a comparison of the most common types:
| Type of Check Valve | Description | Best Use Cases |
|---|---|---|
| Swing Check Valve | Uses a hinged disc that swings open to allow flow and closes when flow stops. | Water supply, wastewater, and gas pipelines. |
| Lift Check Valve | Features a guided disc that lifts up when fluid flows and drops to block reverse flow. | High-pressure systems, steam applications. |
| Ball Check Valve | Uses a spherical ball to block reverse flow. | Sewage systems, slurry and viscous fluid applications. |
| Dual Plate Check Valve | Has two spring-loaded plates that open and close efficiently. | High-flow and high-pressure systems. |

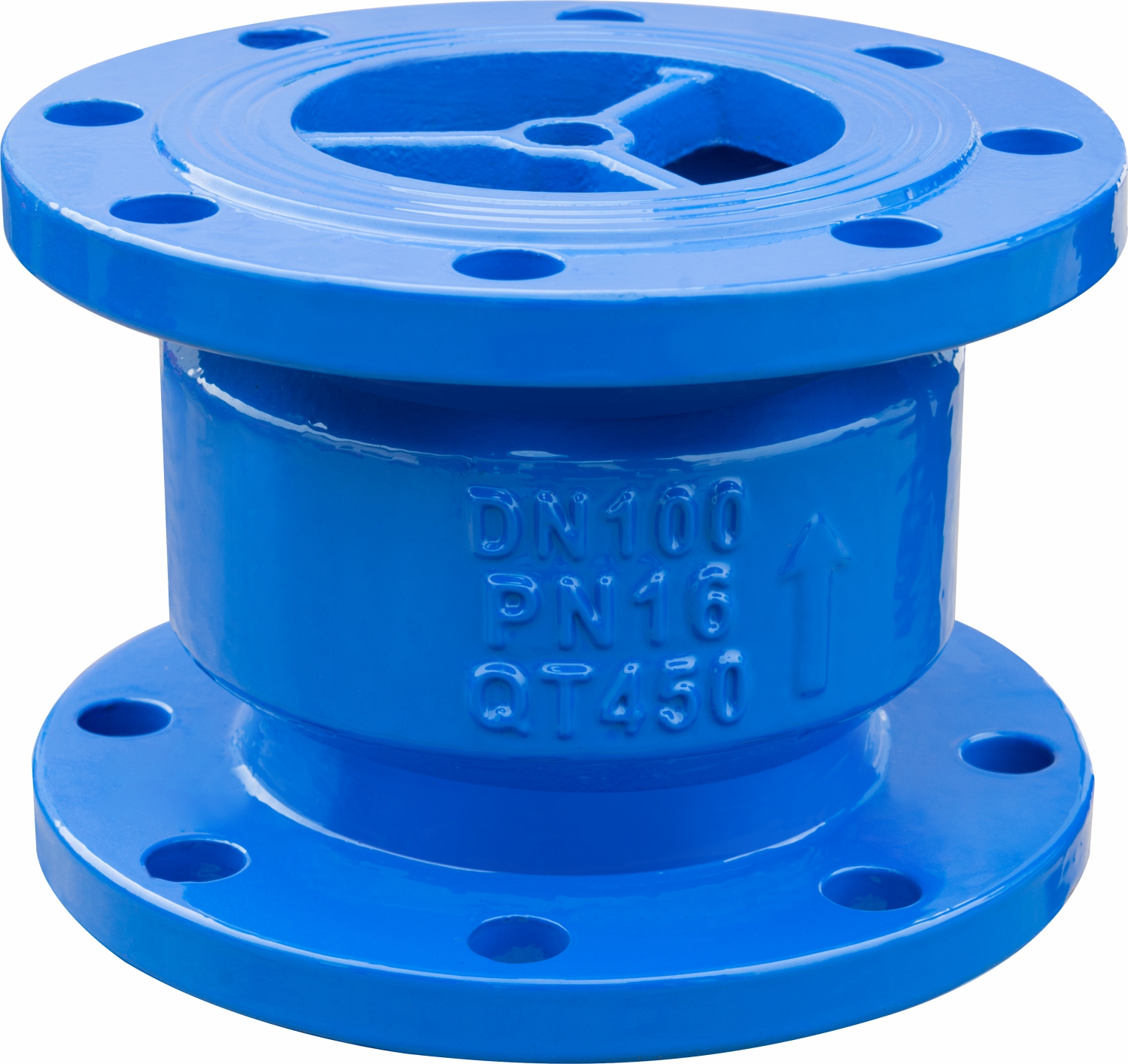

| Silent Check Valve | Uses a spring-loaded mechanism to close the valve smoothly, reducing water hammer. | Pumping stations, HVAC systems, and industrial applications. |
Selecting the correct iron check valve is vital to ensuring efficiency and preventing costly repairs. Below are key factors to consider:
Cast Iron Check Valve – Best for water and low-pressure applications.
Ductile Iron Check Valve – More durable and resistant to pressure fluctuations.
Ensure the iron check valve matches the required flow rate and pressure rating of your system.
High-pressure systems may require lift check valves or silent check valves.
Some check valves work better in vertical pipelines, while others are suited for horizontal installation.
The valve size must match the pipeline diameter to ensure a proper fit and prevent pressure loss.
Ball check valves work well for viscous fluids, while swing check valves are ideal for clean water applications.
Consider temperature resistance if dealing with steam or hot fluids.
Silent check valves and dual plate check valves require less maintenance compared to swing check valves.
Proper installation of an iron check valve is crucial for its effectiveness. Follow these steps for a successful installation:
Before starting, ensure you have the following:
Iron check valve (correct type and size)
Pipe wrench or adjustable wrench
Teflon tape or pipe sealant
Flange gaskets (for flanged check valves)
Pipe cutter (if modifications are needed)
Safety gloves and goggles
Turn off the water or fluid supply.
Relieve pressure from the pipeline to prevent accidents.
Check the iron check valve for any defects.
Ensure the pipeline is clean and free from debris that could obstruct the valve mechanism.
Locate the arrow symbol on the valve body, indicating the correct flow direction.
Install the valve in the correct orientation to prevent malfunction.
For Threaded Valves: Apply Teflon tape to the male threads and tighten the valve using a wrench.
For Flanged Valves: Position the iron check valve between the flanges, insert the gaskets, and tighten the bolts evenly.
Ensure the valve is firmly connected without overtightening.
Check for alignment issues that may cause leakage.
Slowly turn on the fluid supply and check for leaks.
Observe the valve operation to confirm it opens and closes properly.
If leakage occurs, tighten the connections or replace faulty gaskets.
Monitor the valve for a few hours to ensure smooth operation.
An iron check valve is an essential component in fluid control systems, preventing backflow and maintaining pressure stability. Proper selection and installation are critical to ensuring long-term performance and efficiency.
By understanding the different types of iron check valves, evaluating key factors before purchase, and following the correct installation procedure, you can enhance the reliability of your piping system. Regular maintenance and inspections will further extend the lifespan of your iron check valve, reducing downtime and operational costs.
1. What is the best type of iron check valve for water systems?
The swing check valve is commonly used for water systems due to its simple design and effectiveness in preventing backflow.
2. How often should I inspect my iron check valve?
Regular inspections should be performed every 6 to 12 months to check for wear, leaks, or blockages.
3. Can an iron check valve be installed vertically?
Yes, but it depends on the valve type. Some lift check valves and ball check valves work well in vertical installations.
4. What causes an iron check valve to fail?
Common causes include debris buildup, corrosion, improper installation, and excessive pressure fluctuations.
5. How do I maintain an iron check valve?
Routine maintenance includes cleaning the valve, checking for leaks, and replacing worn-out components as needed.
