In the world of industrial fluid control, valves play a critical role in regulating the flow of liquids and gases. Among the many valve types used across various applications, iron gate valves stand out as one of the most reliable and widely utilized options. Known for their sturdy build, dependable operation, and long service life, iron gate valves have become essential components in pipelines carrying water, steam, oil, gas, and other fluids.
But what exactly are iron gate valves? How do they work? And why are they so commonly used in heavy-duty systems across different industries?
This article aims to provide a clear, in-depth explanation of iron gate valves—focusing on their structure, operation, and significance in modern industrial systems.

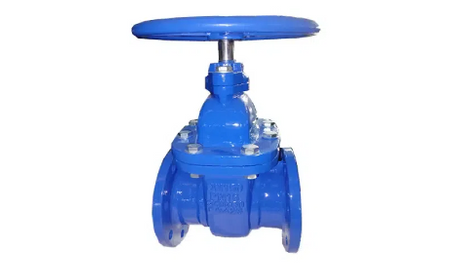

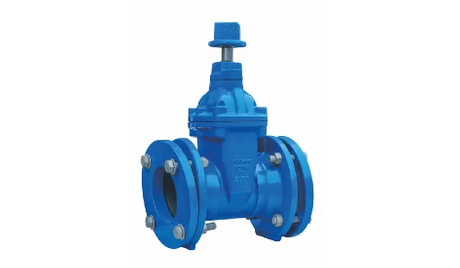

An iron gate valve is a type of isolation valve that uses a flat or wedge-shaped gate (or disc) to control the flow of fluid through a pipeline. When the valve is fully opened, the gate lifts out of the path, allowing a clear and unobstructed flow. When closed, the gate lowers into place to block the flow completely.
The term “iron” refers to the material used in the valve body—typically cast iron or ductile iron. These materials offer excellent strength, durability, and corrosion resistance, making them suitable for demanding environments such as municipal water systems, power plants, chemical facilities, and oil refineries.
Gate valves are generally not used for regulating flow but rather for fully opening or fully closing a flow path. This makes them ideal for systems where flow needs to be stopped or started completely, without throttling or partial restriction.
To fully understand how an iron gate valve functions, it's important to break down its main structural components:
The valve body is the main casing of the valve and is usually made from cast iron or ductile iron. It houses all the internal parts and provides the connection points to the pipeline. Its durability and pressure rating determine how much force and temperature the valve can withstand.
The gate is the central part that moves up and down to either allow or stop the flow. It can have different designs, such as a wedge gate, parallel gate, or knife gate. Wedge-shaped gates are most common because they provide a tighter seal when closed.
The valve seat is the surface inside the body where the gate comes to rest when closed. It ensures a tight seal and prevents leakage. Seats can be metal or resilient (rubber-coated) depending on the type of gate valve.
The stem connects the gate to the handwheel or actuator. When the handwheel is turned, the stem moves the gate up or down. There are two types of stems: rising stem and non-rising stem. Rising stems lift upward as the gate opens, providing a visual indication of the valve’s position. Non-rising stems stay in place, which is useful in confined spaces.
The bonnet covers the top opening of the valve body and contains the stem packing, which prevents leaks along the stem. It also provides support for the handwheel and other moving parts.
Most iron gate valves are operated manually using a handwheel. However, in industrial settings where remote control or automation is needed, electric or pneumatic actuators may be used.
The basic function of an iron gate valve is simple: to open or close the passage of fluid through a pipe.
When the valve is opened, the handwheel or actuator turns the stem, which lifts the gate out of the fluid path. This allows liquid or gas to flow freely through the valve with minimal resistance.
When the valve is closed, the gate lowers into the seat, creating a solid barrier that stops the flow completely. Because the gate seals tightly against the seat, leakage is minimal when the valve is properly maintained.
This on/off operation makes gate valves suitable for applications where fluid must be allowed to pass without restriction or be completely shut off. Gate valves are not recommended for throttling (partially opening the valve to regulate flow), as this can cause gate erosion, vibration, and leakage over time.
The performance of an iron gate valve largely depends on the material used in its construction. The two most common types of iron used are:
Cast iron is known for its hardness and ability to withstand high pressure. It is cost-effective and widely used in water distribution systems, fire protection, and drainage applications.
Ductile iron offers greater strength and flexibility compared to cast iron. It is less brittle and better suited to handle mechanical stress, making it a preferred choice in more demanding industrial environments. It also resists corrosion better, especially when combined with protective coatings such as epoxy.
Iron gate valves have a range of benefits that contribute to their popularity in industrial and municipal systems. Below are some of their most important advantages:
Iron gate valves are built to withstand high pressure, temperature fluctuations, and mechanical stress. Whether installed above ground or buried in the ground, they can perform reliably for decades when properly maintained.
Thanks to their design, gate valves provide excellent shutoff capabilities. This makes them ideal for critical isolation points in systems where leaks are unacceptable, such as chemical lines or potable water networks.
When fully opened, iron gate valves provide a straight-through, unobstructed flow path. This minimizes pressure loss and allows the fluid to move efficiently through the pipeline.
With corrosion-resistant materials and simple operation, these valves require little maintenance and can operate for years without major issues. This lowers the total cost of ownership.
Iron gate valves can be used with a wide range of fluids, including water, steam, oil, slurries, and non-corrosive gases. They are suitable for both above-ground and below-ground installations.
Iron is an affordable material compared to stainless steel or bronze, making these valves a budget-friendly choice for large-scale infrastructure projects.
Iron gate valves are used in virtually every industry that relies on fluid transport and control. Here are some key applications:
In municipal water systems, iron gate valves are commonly installed at main shutoff points and branch lines. They allow maintenance crews to isolate sections of the water system during repairs or upgrades.
These valves are used to handle untreated sewage and processed wastewater. Their ability to manage large volumes and shut off flow quickly makes them essential in treatment facilities.
Iron gate valves are often installed in fire protection networks, including sprinkler and hydrant systems, where a fast and reliable shutoff is crucial for safety and compliance.
In power stations, refineries, and chemical plants, iron gate valves control the flow of high-temperature fluids, steam, and chemicals. Their strength and tight sealing ability make them suitable for extreme conditions.
Agricultural operations use gate valves to manage water flow in irrigation pipelines. Their simple operation and durability are a good fit for remote or rural installations.
Heating and cooling systems in commercial buildings often use gate valves to manage the flow of hot and cold water. Iron gate valves offer a cost-effective solution with long service life.
Like any mechanical component, iron gate valves need periodic inspection and maintenance to perform optimally. Here are some helpful tips:
Operate the valve regularly to prevent the gate from sticking due to scale or sediment buildup.
Check for leaks around the stem and bonnet. Replace packing if necessary.
Inspect coatings for damage or rust. Reapply protective coatings to prevent corrosion.
Clean internals if the valve has been exposed to dirty or corrosive fluids.
Avoid throttling the valve, as it can cause damage to the gate and seat.
Lubricate moving parts if recommended by the manufacturer, especially in manually operated versions.
Regular maintenance will help extend the valve’s service life and prevent costly system shutdowns.
Iron gate valves have long proven to be among the most reliable and versatile valves used in both industrial and municipal systems. Their robust design, full-bore flow capability, and tight sealing make them well-suited for controlling fluid flow in many applications. Whether managing water treatment, fire protection, or industrial processes, these valves provide the strength and dependability needed to keep operations efficient and safe.
