Modern ships are intricate systems composed of numerous subsystems that require precise control of liquids and gases. At the heart of this control lies the marine valve—an essential component that ensures reliable flow regulation across fuel systems, cooling lines, ballast tanks, and ventilation circuits. Whether it's managing seawater intake or preventing overpressure in ballast tanks, marine valves serve as the gatekeepers of fluid and air movement onboard. At FJV, we offer a full line of precision-engineered marine valves, including Marine Cast Iron Gate Valves and Marine Air Valves, designed to perform consistently in challenging marine conditions.
A marine valve functions by controlling the flow of fluids or gases through pipelines on board a ship. This is achieved through mechanical movement that opens, closes, or partially blocks passageways to regulate volume, direction, or pressure.
Most marine valves fall into one of two broad categories based on how they are operated:
Manual valves are operated by hand, typically through a wheel or lever. They are ideal in systems where infrequent adjustment is required or where manual oversight is necessary for safety reasons. Their simplicity makes them reliable and easy to maintain.
Automated valves use actuators—hydraulic, pneumatic, or electric—to control valve operation remotely or automatically based on system feedback. These are especially useful in modern marine systems with centralized control panels and require minimal human intervention. Automated valves are often used in critical systems like engine cooling, fuel management, and firefighting systems.
Regardless of operation type, all marine valves work by manipulating an internal component—such as a gate, disc, ball, or diaphragm—that either permits or obstructs flow.

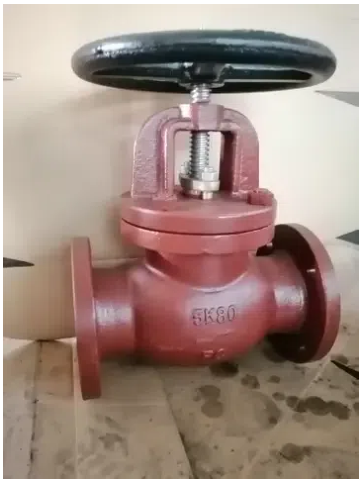

One of the most frequently used valves in marine applications is the Marine Cast Iron Gate Valve. It offers a straightforward yet highly effective design that provides a tight seal and full bore flow when open.
Gate valves operate by moving a gate (or wedge) vertically in and out of the fluid path. In a rising stem design, the stem visibly moves up when the valve is open, making it easy to identify the valve position. Non-rising stem designs are more compact and suited for space-limited installations, though they require indicators to confirm valve status.
When the gate is fully lowered, it seals tightly against the valve seats, completely stopping fluid flow. When raised, the gate retracts fully, allowing unrestricted passage through the valve. This full open/close capability makes gate valves ideal for isolation rather than flow regulation.
Marine Cast Iron Gate Valves from FJV are constructed with anti-corrosive coatings and precision-machined parts, ensuring minimal leakage and high durability even when exposed to seawater and pressure fluctuations.
Typical uses on ships include:
Fuel line shutoff
Bilge discharge control
Ballast water intake isolation
Cooling water loop management

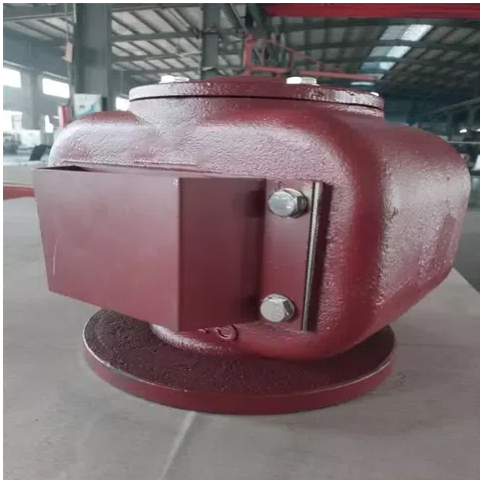

Not all marine valve operations involve liquids—air must also be carefully managed in ship systems. Marine Air Valves serve a vital function by releasing unwanted air pockets and maintaining pressure balance in fluid systems.
Air valves can operate manually or automatically, depending on the application:
Automatic air valves open and close in response to system conditions. When air accumulates at a high point in the pipeline, the valve vents it out automatically. Similarly, during draining operations, the valve admits air to prevent vacuum formation.
Manual air valves require human intervention and are generally used in non-critical or inspection-based systems where automatic control isn’t necessary.
Air trapped within pipelines can cause several issues, such as pump cavitation, flow blockage, and inaccurate system pressure. Marine Air Valves are often found in:
Ballast and bilge systems
Firefighting water supply lines
Freshwater tanks
Cooling water headers
FJV’s marine air valves are manufactured from durable materials and feature corrosion-resistant designs, making them ideal for continuous, maintenance-free operation in salt-laden environments.
Marine valves must withstand some of the harshest operational environments on the planet. Several key factors influence their performance and longevity:
Valves on board must endure varying pressure levels—from high-pressure fuel lines to low-pressure ballast tanks. If not rated correctly, a valve may deform or fail under pressure surges. At FJV, all our marine valves are tested for pressure resilience using advanced simulation and testing systems.
Valves often encounter extreme temperature changes, from cold seawater intake to high-temperature engine cooling systems. Materials must expand and contract without compromising seals or mechanical integrity. Marine valves made from cast iron perform well in medium-temperature applications, offering good thermal stability and durability.
Saltwater is one of the most corrosive natural elements. Marine valve materials and coatings must resist corrosion to maintain functionality over time. FJV applies electrostatic spraying and other surface treatments to provide robust corrosion resistance in our Marine Cast Iron Gate Valves and Marine Air Valves.
Ease of maintenance is crucial at sea, where time and resources are limited. Valves with fewer moving parts, self-cleaning features, or simple disassembly designs help reduce downtime. Regular inspection, cleaning, and lubrication significantly enhance valve life.
Even the most well-built valve can underperform or fail if not operated correctly. Ensuring proper use and maintenance is critical for:
Preventing leaks that can damage ship compartments or machinery
Maintaining flow accuracy, which is essential for system balance
Protecting personnel from system overpressure or backflow accidents
Routine Inspections: Check for signs of corrosion, leakage, or mechanical wear.
Lubrication: Ensure stems, seals, and gaskets are appropriately lubricated.
Proper Training: Ensure crew members understand valve functions and operating procedures.
Use Original Components: Always replace worn parts with certified components to avoid compatibility issues.
Record Keeping: Maintain logs of valve operations, repairs, and replacements to detect recurring issues.
FJV also provides support and guidance for valve maintenance best practices, helping clients extend the life of their investment.
The operation of a marine valve might seem simple on the surface, but its impact on a vessel’s safety and performance is profound. Whether it's the precise shutoff of a Marine Cast Iron Gate Valve or the automatic venting provided by a Marine Air Valve, these components are fundamental to fluid and air control on ships. Understanding how each valve functions—and how to maintain them—can significantly reduce operational risk and downtime.
At FJV, we’ve been delivering reliable marine valve solutions since 2006, combining rigorous engineering, quality manufacturing, and corrosion-resistant designs. Our marine valves are trusted across global fleets for their consistent performance and long-term durability.
To discover more about how our marine valve solutions can support your vessel’s needs, contact us today for expert assistance and product recommendations.
