Marine operations rely on a variety of specialized components to ensure safety, efficiency, and system integrity—among them, marine valves are some of the most critical. These valves control the flow of liquids and gases within onboard systems, ensuring that vessels function reliably in diverse conditions. Because each system has unique requirements, a wide range of marine valve types exists, each tailored to specific functions, flow needs, and installation environments. At FJV, we offer a full spectrum of high-performance marine valves, including Marine Cast Iron Gate Valves and Marine Cast Iron Angle Valves, all engineered to deliver durability and precision in demanding maritime conditions.
Among the most commonly used types of marine valves, gate valves serve as essential components for on/off fluid control. These valves operate using a vertical gate mechanism that lowers or raises to block or permit flow. When fully open, they create minimal pressure drop, allowing a straight, unobstructed passage of fluid.

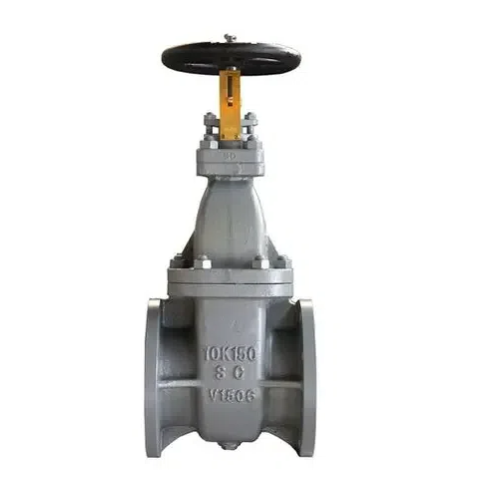

Marine Cast Iron Gate Valves are particularly valued for their corrosion resistance and cost-effectiveness in low-to-medium pressure systems. Their structure supports tight sealing and long operational lifespans when used in seawater or freshwater lines. FJV’s cast iron models are treated with anti-corrosive coatings and undergo stringent testing to ensure high performance even in highly saline environments.
Gate valves are commonly found in:
Fuel transfer systems
Bilge and ballast operations
Cooling water circuits
Drainage systems
Their full-flow capabilities and durability make them ideal for situations requiring dependable shutoff without throttling.
In systems where space is at a premium—like those aboard compact vessel designs or densely packed engine rooms—angle valves are a practical choice. These valves redirect flow by 90 degrees, integrating the functions of a valve and a pipe bend in a single unit.
Marine Cast Iron Angle Valves are favored for their ease of installation in tight or cornered spaces. With a right-angled body design, they help maintain a compact piping layout without compromising flow regulation or system efficiency. Cast iron remains a material of choice due to its excellent resistance to rust, good mechanical strength, and long service life.
Applications of marine angle valves include:
Freshwater supply and discharge systems
Engine cooling lines
Auxiliary systems with limited installation space
Angle valves also allow easier access for maintenance and repairs, which is particularly beneficial during routine checks in restricted engine compartments.
While some marine valves regulate liquid flow, others manage air—this is where marine air valves come into play. Air trapped in fluid systems can lead to inefficiencies, pressure imbalances, and even mechanical damage. Air valves are designed to automatically expel air from the system or admit air when negative pressure arises.
Air valves are vital in:
Ballast tank management
Freshwater lines
Wastewater discharge systems
Fire-fighting water circuits
There are several types of marine air valves:
Automatic Air Valves: Open automatically when air accumulates.
Vacuum Breakers: Let air in to prevent vacuum formation during draining.
Combination Air Valves: Handle both air release and vacuum breaking.
These valves are usually installed at high points in piping systems to ensure proper venting. FJV’s marine air valves are constructed for high resistance to corrosion and salt exposure, supporting critical pressure regulation with minimal maintenance needs.
Beyond gate, angle, and air valves, the marine industry utilizes several other valve types to manage flow control in specialized scenarios.
Ball valves use a rotating ball with a bore to control fluid flow. Known for their compactness and quick operation, they’re suitable for shutoff applications in systems like chemical dosing or emergency shutdown circuits.
Check valves allow fluid to flow in one direction only, automatically preventing backflow. They are essential in fuel lines, bilge systems, and other areas where back pressure could cause failure or damage.
Lightweight and efficient, butterfly valves are often used in large-diameter piping systems. Their simple quarter-turn mechanism makes them ideal for fast flow regulation, especially in air intake or exhaust systems.
Selecting the correct valve is not just about controlling flow—it’s about ensuring system safety, reliability, and cost-efficiency. Incorrect valve choices can lead to premature wear, increased maintenance, or even catastrophic failures at sea. That’s why consulting with marine valve specialists, like the team at FJV, ensures the right product fit for the application.
The choice of material is as critical as the valve type itself. Different environments and applications place different demands on the valve’s physical and chemical resistance.
Cast Iron: Highly resistant to corrosion, especially when coated. Offers excellent cost-efficiency and is ideal for non-critical or low-pressure marine systems like bilge or freshwater lines.
Cast Steel: Better suited for high-pressure, high-temperature environments. Offers greater mechanical strength but typically requires more maintenance in corrosive conditions unless properly treated.
At FJV, our marine valves are offered in both cast iron and cast steel, depending on customer needs. Our Marine Cast Iron Gate Valves and Marine Cast Iron Angle Valves are coated using advanced spraying techniques to further boost corrosion resistance. Choosing the correct material ensures longer service life, fewer repairs, and better overall system performance.
In the world of maritime operations, marine valves are essential for regulating fluid and air across various shipboard systems. From the dependable Marine Cast Iron Gate Valve used in fuel and cooling systems to the space-saving Marine Cast Iron Angle Valve, and the air-managing marine air valves that ensure pressure balance—each type has a critical role to play. Ball valves, check valves, and butterfly valves further expand the functional spectrum, meeting niche needs across vessel operations.
Understanding these different types and selecting the appropriate valve based on system design, pressure levels, and environmental conditions is vital to maintaining vessel safety and efficiency. At FJV, we bring nearly two decades of expertise to marine valve design and manufacturing, offering a wide selection of durable, certified valves that meet the challenges of modern maritime engineering.
To learn more about our comprehensive range of marine valves or to receive expert guidance on choosing the right solution for your vessel, contact us today.
